mobile Ground Control Station (mGCS)

mGCS is a software application that serves as the UAV operator's user interface for controlling and monitoring mini and small unmanned vehicle systems. It is designed for use on portable computers and hand-held controllers and is engineered to integrate to virtually any vehicle systems. In cases where sensor and/or vehicle control is not available, mGCS doubles as a Remote Viewing Terminal (RVT). mGCS is STANAG 4586 compliant commercial off-the-shelf (COTS) software.

Capabilities and Features

Mini and small UAV missions are characterized by operations in which operators must maximize their effectiveness and achieve objectives in short timeframes and in challenging environments. mGCS is designed to be exceptionally easy-to-use allowing operators to focus on flying the mission, not the aircraft. Operators require minimal training to use the software. mGCS features:

  • An intuitive user interface optimized for touchscreens minimizes training requirements

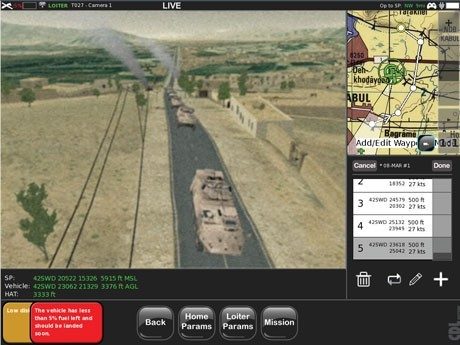

  • Two view modes allow the operator to toggle between the video and map display as the primary view mode
  • A color-coded warning, caution, and advisory system allows system health messages to automatically popup
  • Intuitive information readouts provide real-time context to vehicle and sensor operation
  • Critical information such as fuel remaining and controller battery life is displayed at all times

Access to real-time and archived full motion video from an electro- optical sensor is crucial in maximizing situational awareness and ensuring that mission objectives are consistently and effectively met. mGCS includes an integrated video viewer featuring:

  • Discover, preview, and select from multiple available video sources
  • Display video in live or playback mode
  • Digital video support (MPEG-2 and H.264 with KLV metadata (MISB 0601.2), as defined in STANAG 4609)
    Software-based decoding of digital video eliminating the need for a dedicated video card
  • Textual and graphical video overlays indicating vehicle location, altitude, speed, sensor stare-point location, and sensor height above target

Live sensor and video data can be manipulated using built-in features that give the operator the ability to:

  • Manually slew sensor stare-point
  • Reposition sensor stare-point by using the video display or map
  • Dynamically control sensor zoom
  • Operate sensor using a joystick
  • Capture and save still video frames as images (JPG, TIFF, lossless NITF2.1 with metadata)
  • Pause and resume live video
  • Record live video
  • Pause, rewind, and fast-forward recorded video

System Requirements

mGCS is designed to work with commercially available portable computers as well as custom hand-held controllers. The following system requirements are recommended:

  • x86 system hardware
  • Intel Core i5 or better
  • Windows 7/8/10 64-bit or Red Hat Enterprise Linux 5.5 or newer
  • Joystick (optional)
  • Touchscreen (optional)
