The Lockheed Martin Procerus Technologies Indago quadrotor unmanned aerial system (UAS) goes beyond an average drone’s capabilities. With its leading endurance and quick deployment ability, Indago gives civilians and warfighters an eye-in-the sky in just minutes. The UAS, along with its payload options and advanced ground control software, helps users to accomplish diverse missions including precision agriculture, firefighting, first response, and mapping, surveying and inspections.

Deployed in minutes

The collapsible Indago quadrotor UAS weighs less than 5 lbs. and folds into a man-packable unit that requires no tools for assembly. Indago can be unfolded in 60 seconds, and airborne in just 2.5 minutes.
Indago folded

FEATURES AND SPECIFICATIONS

In addition to its compact folding design and quick setup time, the Indago quadrotor UAS features include:

  • Whisper quiet, rugged, all-weather capability
  • Configurable failsafe behaviors
  • Industry-leading image stabilization
  • Proven Kestrel 3 autopilot
  • Multiple hot-swappable payload options
  • Up to 50 minutes flight time with 200 gram payload
  • Line-of-sight range of 2.5 kilometer
  • More than 3 kilometer range using optional long range antennae kit
  • A ready to fly weight of 5 lbs. with payload included (2,268 grams)
  • UAV dimensions (L x W x H):
    • Open: 32 x 32 x 7
    • Folded: 12 x 9 x 6
  • Operating altitude of 10-500 ft. AGL (typical), 18,000 ft. MSL
Wireless Handheld

WIRELESS HAND CONTROLLER

In tandem with the UAV platform, the Indago quadrotor UAS includes a weather-resistant wireless hand controller, which provides an easy-to-use interface for untethered UAV operation. The wireless hand controller can be used for small unmanned aircraft operation, whether fixed wing or VTOL, to provide onboard video recording and high resolution still images. With a runtime of four hours, the lightweight 3.5 lbs. hand controller has an ergonomic design with a large touchscreen. Among its capabilities are a full spectrum of features that help make the Indago VTOL transcend the capabilities of an average drone:

  • Virtual Cockpit™ user-friendly mapping interface
  • Powerful mission planning tools
  • In-flight re-tasking
  • Full waypoint navigation
  • Windows-based operating system
  • Wi-Fi link to laptop and video dissemination
  • Integrated GPS and 4G LTE connectivity

SEE THE INDAGO IN ACTION


INDAGO: READY FOR CIVIL, MILITARY APPLICATIONS

The Indago goes beyond the stable, capable design of the unmanned aerial vehicle. Features include an extended hover and fast forward flight capability that provides military, civil and commercial customers with a quick aerial reconnaissance capability in crowded areas unreachable by fixed-wing unmanned aircraft. The Indago’s payload system provides additional capability that separates Indago from the average drone. Featuring a quick disconnect adapter, Indago allows the operator to choose an appropriate payload that suits the mission. There are payloads available for a variety of different applications including: precision agriculture, mapping, surveying and inspection, and reconnaissance. Additional payloads are in development.

Indago Firefighting
Indago can operate through wind, smoke, dust and flames to help firefighters identify the intensity and location of hot spots, as well as provide information on areas where people and property are at risk.
Indago Project Lifesaver
When time is critical during first response operations such as search and rescue, the Indago can be deployed to extend the eyes of first responders and increase their efficiency.
Indago Disaster Relief
Following natural or manmade disasters, Indago provides mapping and terrain data in areas with no roads and environmental challenges.
Indago Agriculture
Commercial farmers use the Indago VTOL to monitor their crops using the system’s high resolution imagery.
Indago First Response
After a fire, an accident or in hazardous search-and-rescue operations, first responders need to quickly assess the situation and determine how to assist or find people in dangerous situations.

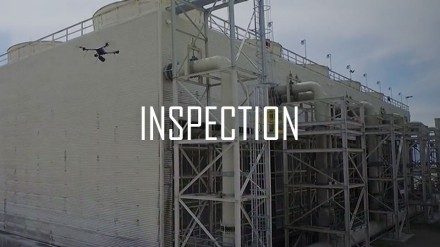

Indago Inspection
Indago can safely and quickly conduct required inspections of commercial, agricultural and industrial systems, reducing the risk and costs of these reviews.
